Eurowise 4″ Lift Kit for 2019+ Mercedes G550/G63 W463A (fits Euro-spec 2018+ Mercedes G500)

This 4″ lift kit fits the Mercedes G500, G550, and G63 (2018-on Europe & 2019-on U.S.) and allows up to 35″ tires. The kit includes everything you need to lift your Mercedes G-class also known as a G-wagon.

The vehicle shown here was fitted with 33″ tires. The manufacturer stated there were no codes on the dash after installation. Larger tire sizes may cause an issue with the vehicle’s ABS wheel speed sensors. Professional alignment recommended after installation.

Includes:

– Suspension Lift Springs
– Front suspension adapter spacer
– Rear shock relocation brackets
– Extended brake lines
– Installation hardware
– Works with Agility Control
– Compatible with AMG Ride Control
– Compatible with Adaptive Suspension
– Made in America and backed by a lifetime warranty
– Lead time is 1-2 weeks

Notes:

The kit will fit vehicles with Adaptive Suspension (A20), Agility Control, and AMG Ride Control. To avoid codes, use 33″ tires. If you choose to install 35″ tires, please be aware that you will most likely get warning lights on the dash for active brake assist, blind spot, and active distance assist. The codes can be cleared from the steering wheel every time the vehicle is started. The first photo of the grey G63 is with 33″ tires. The other 3 photos show 35″ tires.



Installation:

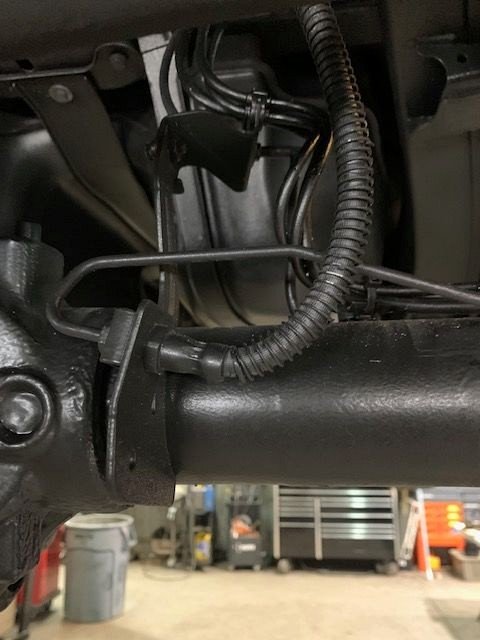

1. Remove rear brake lines and install supplied extended rear brake lines

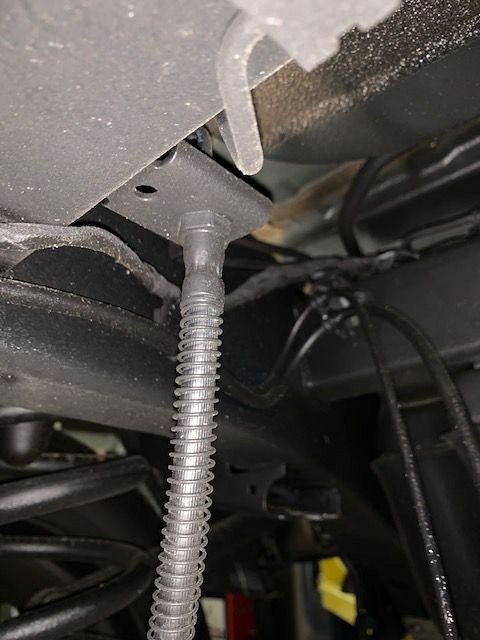

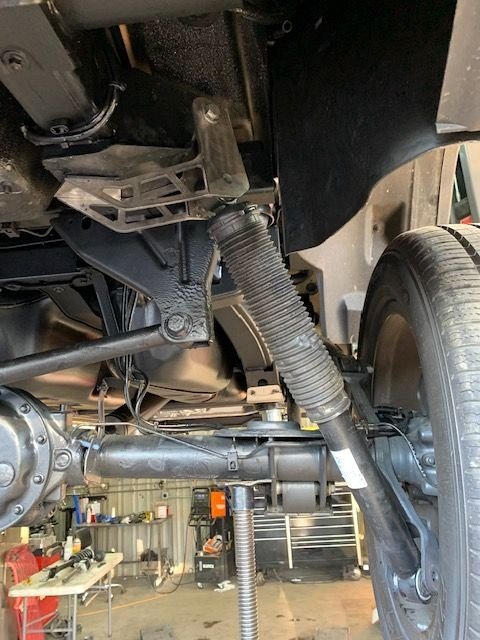

2. Next with a pole jack supporting the rear axle remove both rear shocks. You can do them one at a time as well. Keep both OEM mounting bolts because you will be reusing them



3. Locate this Large round hole on both sides of the rear frame mounts

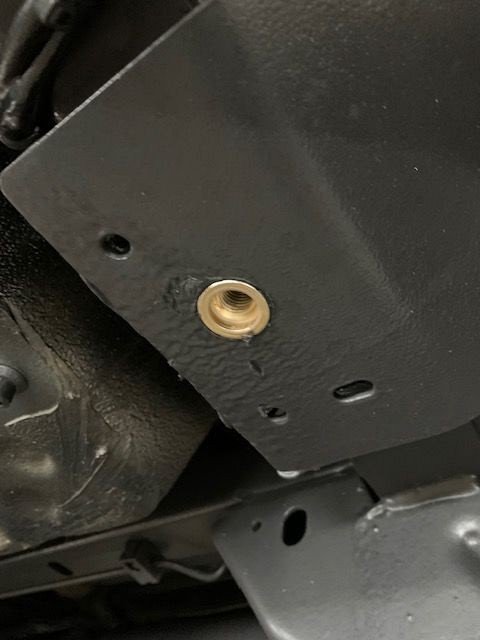

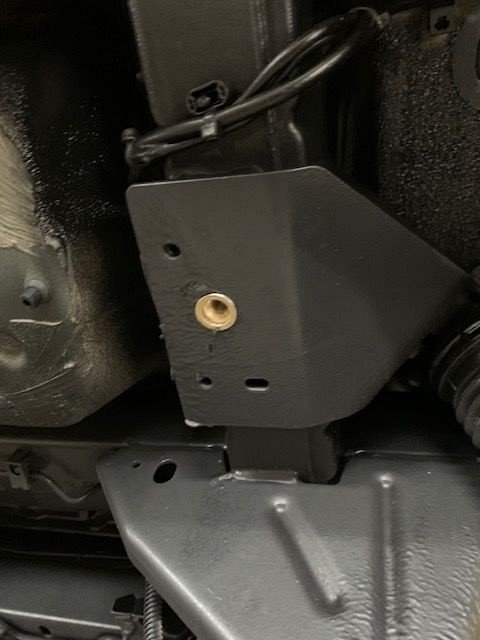

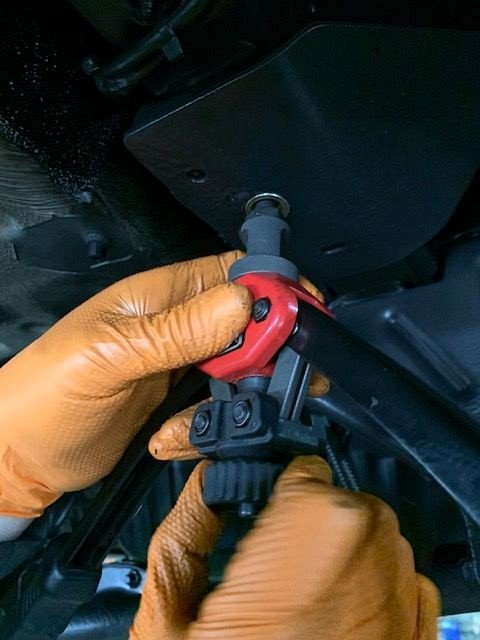

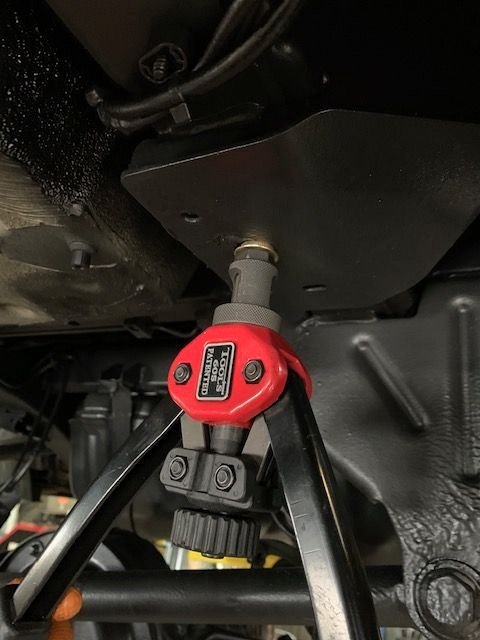

4. Using supplied M12 outsert install the insert onto your tool and install in rear into OEM frame hole location. This will be your Shock relocation mounting hole. Repeat steps for both sides in rear



5. Next install the shock relocation bracket. You will use the supplied bolt to attach the bracket to the OEM mounting location and reuse the OEM bolt to install the shock back onto the new relocation bracket

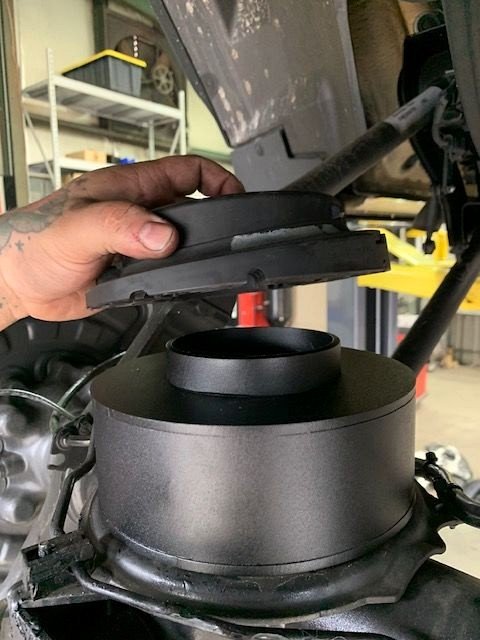

6. Now place the large rear round spring spacer on the rear axle. You will need to remove the OEM plastic spring mount first.



7. You need to use small cutters to remove the tabs along the inside of the plastic springs seat. this will allow you installation onto the new spring spacer on rear.

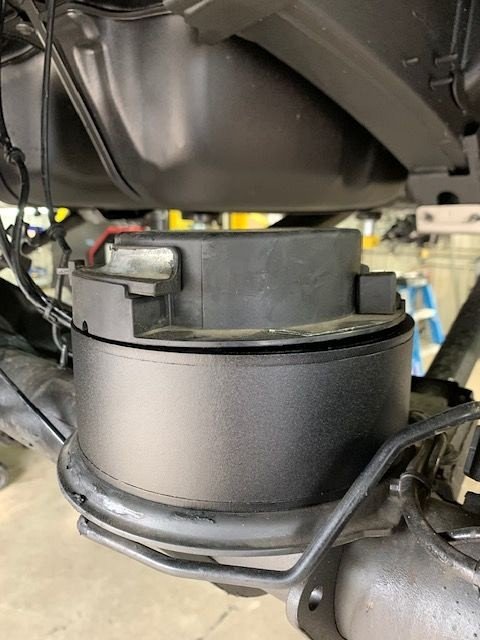

8. Now reinstall OEM spring seat onto the new spacer.



9. Install the provided lift springs next

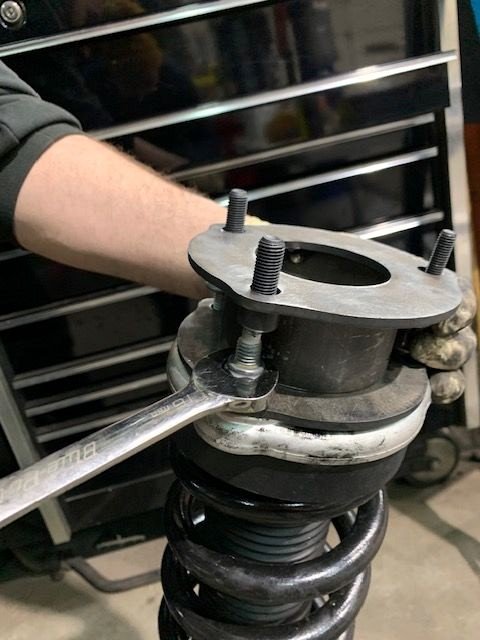

10. The front is pretty straightforward…remove front struts and install supplied lift springs. After installation of front springs install our upper strut extension bracket. The side with the nutsert faces upwards. We changed the design since this photo was posted to simplify the install when putting strut back in.

11. Install the mount and reuse the OEM nuts to bolt the bracket down. You will need to clock the upper strut mount so they line up with the chassis again.



12. Using the 6 supplied flanged M10 bolts. Bolt the struts in from the top.

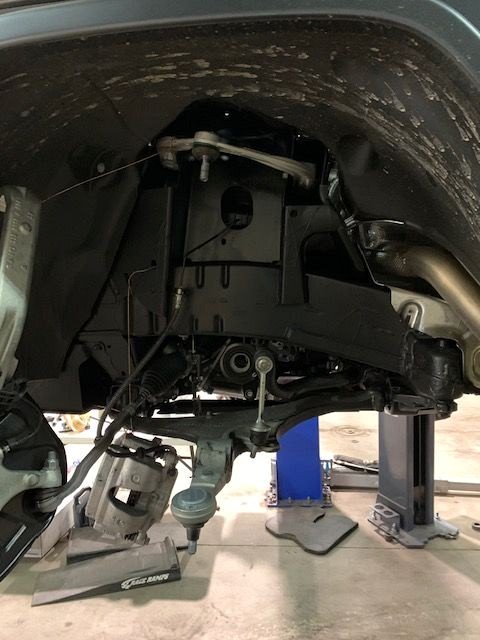

13. Tip: Axle nut and axle must be remove and spindle will need to be swung out of the way along with brake caliper to remove and install strut back into place.

14. Alignment is needed when done.

Email us for any technical questions.



Potential Codes:

With 35″ tires, you will get these codes on the dash.

With 33-35″ tires, you may also get a code, “Blind Spot Warning Inactive.”

Some other options for lifting the vehicle with no codes are the LeTech 2″ G550 lift kit, the LeTech 2″ G63 lift kit, or the Portal Axle Conversion for G550/G63 AMG.
